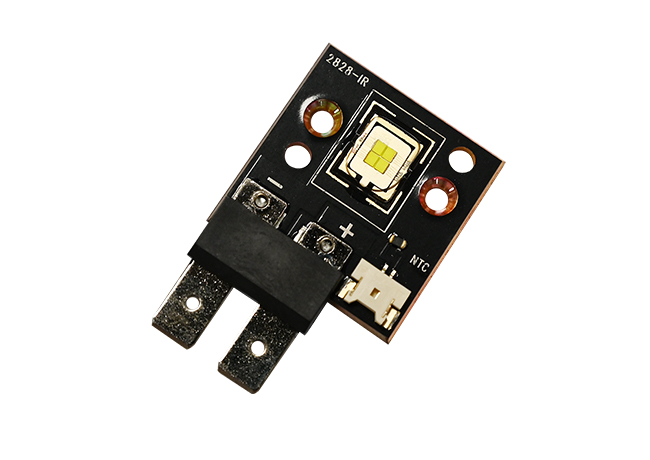

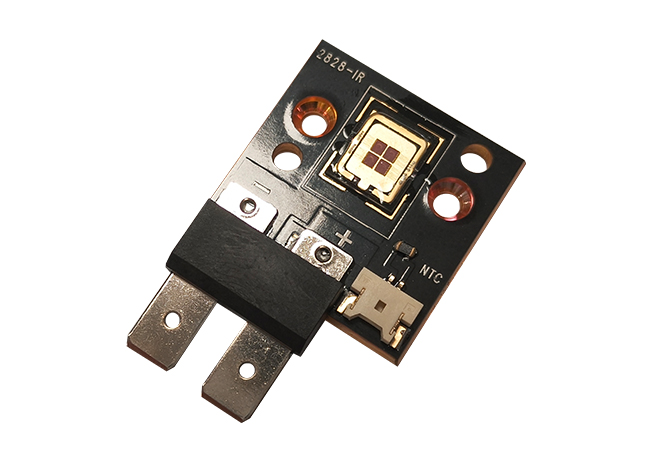

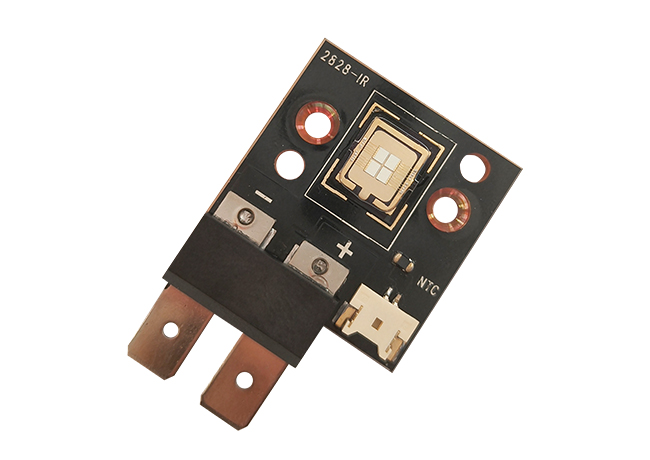

High Power Density Series

Vertical structure chip with ultra-thin flat glass encapsulation,;

Compact Monochromatic;

customizable;

Fiber Optic Illumination: Machine vision, microscopes and other instruments, inspection and industrial applications;Stage Lighting: Stage and entertainment spotlights, narrow-beam projectors;Specialty Lighting: Architectural lighting, wall washers, outdoor projection; Moving heads, gobo projection, contour/logo projection, searchlights.

ModelMax PowerVfMax IfWLD/CCTTest IfFluxSpecification sheet
HP2828-R40W1.8-2.4V20A620-630nm5A500-600lm9.HP2828-60W 单色铜基板.pdf
HP2828-G60W2.8-3.4V20A520-530nm5A1500-1600lm
HP2828-B60W2.8-3.6V20A450-460nm5A250-300lm
HP2828-W60W2.8-3.6V20A5500-6500K5A1800-2000lm
