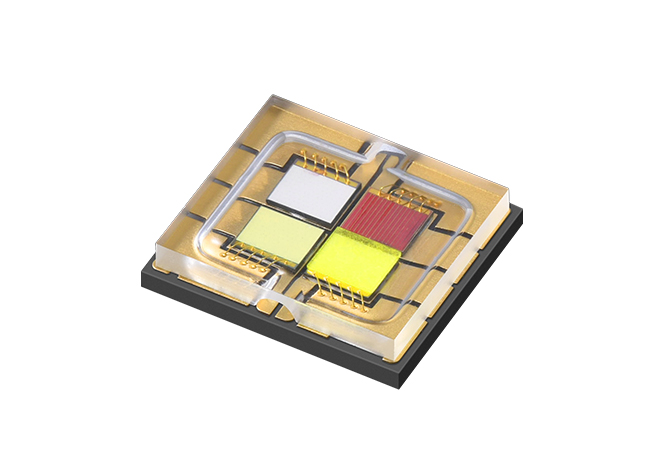

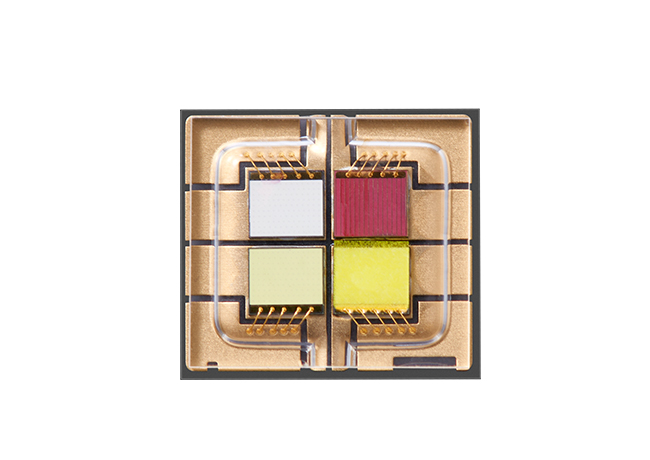

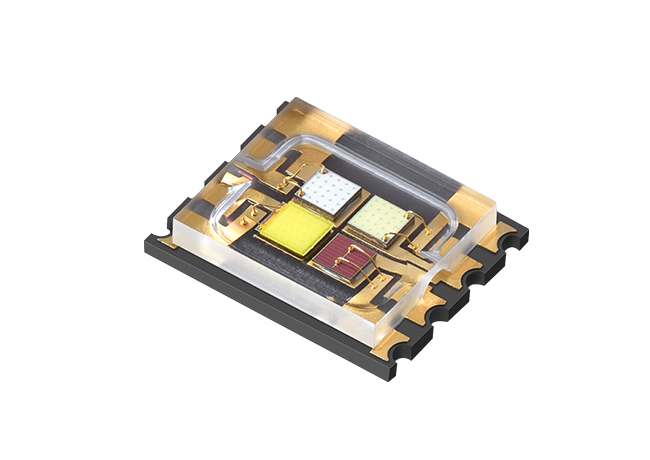

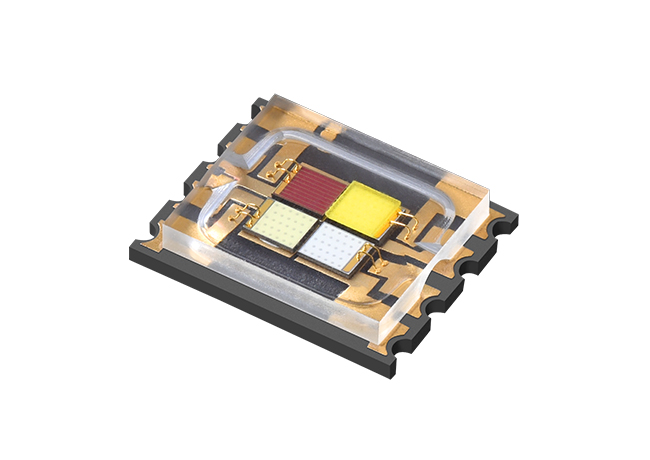

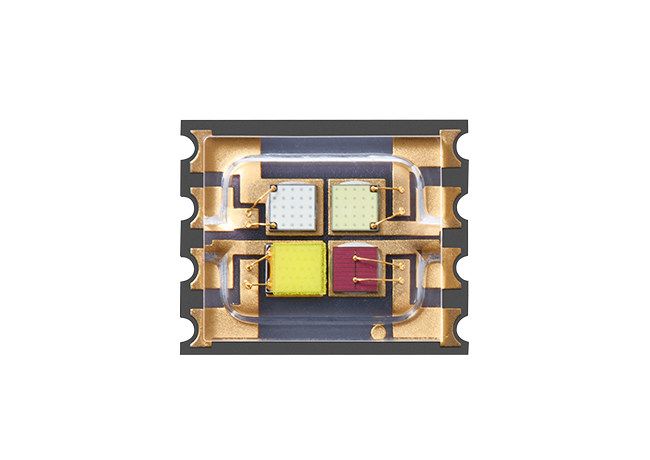

High-Power RGBW Series

Vertical structure chip with ultra-thin flat glass encapsulation, thermoelectric separation design;

Compact multi-color RGBW LED;

Ceramic substrate, customizable;

Fiber Optic Illumination: Machine vision, microscopes and other instruments, inspection and industrial applications；Stage Lighting: Stage and entertainment spotlights, narrow-beam projectors；Specialty Lighting: Architectural lighting, wall washers, outdoor projection; Moving heads, gobo projection, contour/logo projection, searchlights.

Return to List Contact Now


ModelMax Power(W)Vf(V)Max If(mA)WLD/CCT(nm/W)CRIFlux(lm)Specification sheet
CCF5060W-20W Series 20 R: 2.4-2.8
G: 3.0-3.6
B: 3.0-3.6
W: 3.0-3.6		 R：0.8
G：1.5
B：1.5
W：1.2		 R：620-630
G：520-530
B：450-460
W：6000-7000		 70 R：70-100
G：260-300
B：40-60
W：250-300		XY5060RGBW-6500K-20W 产品规格书
CCF5060W-40W Series 40 R: 2.4-2.8
G: 3.0-3.6
B: 3.0-3.6
W: 3.0-3.6		 R：2.0
G：2.5
B：2.5
W：2.5		 R：620-630
G：520-530
B：450-460
W：6000-7000		 70 R：120-150
G：320-360
B：60-80
W：500-600		XY5060RGBW-6500K-40W 产品规格书
CCF6070W-60W Series 60 R: 2.4-2.8
G: 3.0-3.6
B: 3.0-3.6
W: 3.0-3.6		 R：5.0
G：5.0
B：5.0
W：5.0		 R：620-630
G：520-530
B：450-460
W：6000-7000		 70 R：200-250
G：550-650
B：120-150
W：800-1000		XY6070RGBW-6500K-60W 产品规格书
